Description

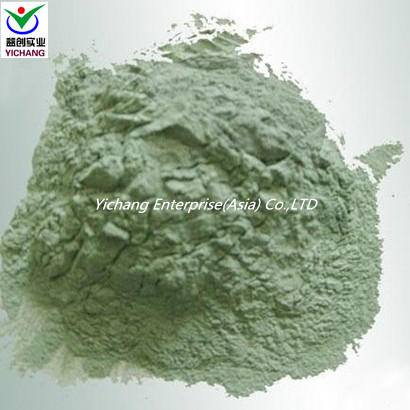

Green Silicon Carbide grit & powder
1.Microcosmic shape is a hexagonal crystal, Mohs hardness is 9.3, Vickers hardness is 2940-3300 kg/mm, microhardness is 2670-2815 kg/mm3.
2.Among abrasives, silicon carbide's hardness is higher than corundum, and ranked below diamond, CBN and boron carbide.
3.Density generally viewed is 3.20g/ mm3 , density of heap is 1.2-1.6g/ mm3 , specific gravity is 3.20~3.25.
4.Raw material are petroleum coke and quality silicon sand, appended with salt, then smelted in electric arc furnace. Mechanical strength is higher than corundum.
Good resistance to high temperature
Good wear resistance and anti-friction properties
Excellent resistance to sudden changes in temperature
Good chemical resistance and oxidation resistance
Low thermal expansion and high thermal conductivity (superior to steel)
Good electrical conductivity
Particle size comparison of commonly used abrasive: F320-F2000

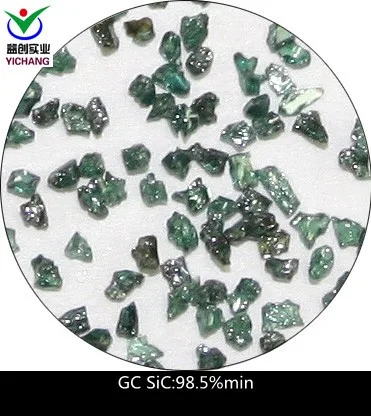

Grit size : F20-F220
1.Microcosmic shape is a hexagonal crystal, Mohs hardness is 9.3, Vickers hardness is 2940-3300 kg/mm, microhardness is 2670-2815 kg/mm3.
2.Among abrasives, silicon carbide's hardness is higher than corundum, and ranked below diamond, CBN and boron carbide.
3.Density generally viewed is 3.20g/ mm3 , density of heap is 1.2-1.6g/ mm3 , specific gravity is 3.20~3.25.
4.Raw material are petroleum coke and quality silicon sand, appended with salt, then smelted in electric arc furnace. Mechanical strength is higher than corundum.
Silicon Carbide is characterized by its high wear resistance and good mechanical properties,
Its typical characteristics are as following
Low density and high strengthGood resistance to high temperature
Good wear resistance and anti-friction properties
Excellent resistance to sudden changes in temperature
Good chemical resistance and oxidation resistance
Low thermal expansion and high thermal conductivity (superior to steel)
Good electrical conductivity
Main applications:
solar wafer, semiconductor wafer and quartz chip wire sawing and lapping; bonded and coated abrasive tools; stone polishing; processing metal and non-ferrous metal with low tensile strength, such as gray pig iron, brass, aluminum, stone, leather and rubber.Particle size comparison of commonly used abrasive: F320-F2000
|
|
Particle size distribution (micron) | Chemical Index | Physical Index | ||||||
| Size | D3 | D50 | D94 | SiC ≥(%) | Fe2O3≤(%) | F•C ≤(%) | PHValue | Density of heap | Magnetic Materials≤(%) |
| GC#800 | ≤20.0 | 14.0±1.0 | ≥9.0 | 99.00 | 0.20 | 0.2 | 6--8 | 1.18 | 0.008 |
| GC#1000 | ≤18.3 | 11.5±1.0 | ≥7.0 | 98.50 | 0.20 | 0.2 | 6--8 | 1.15 | 0.008 |
| GC#1200 | ≤17.5 | 9.5±0.8 | ≥5.5 | 98.50 | 0.20 | 0.2 | 6--8 | 1.13 | 0.005 |
| GC#1500 | ≤14.5 | 8.0±0.6 | ≥4.5 | 98.00 | 0.20 | 0.2 | 6--8 | 1.12 | 0.005 |
| GC#1800 | ≤13.5 | 7.0±0.6 | ≥4.2 | 98.00 | 0.20 | 0.2 | 6--8 | 1.05 | 0.005 |
| GC#2000 | ≤13.0 | 6.7±0.6 | ≥4.0 | 98.00 | 0.20 | 0.2 | 6--8 | 1.00 | 0.005 |
Grit size : F20-F220
